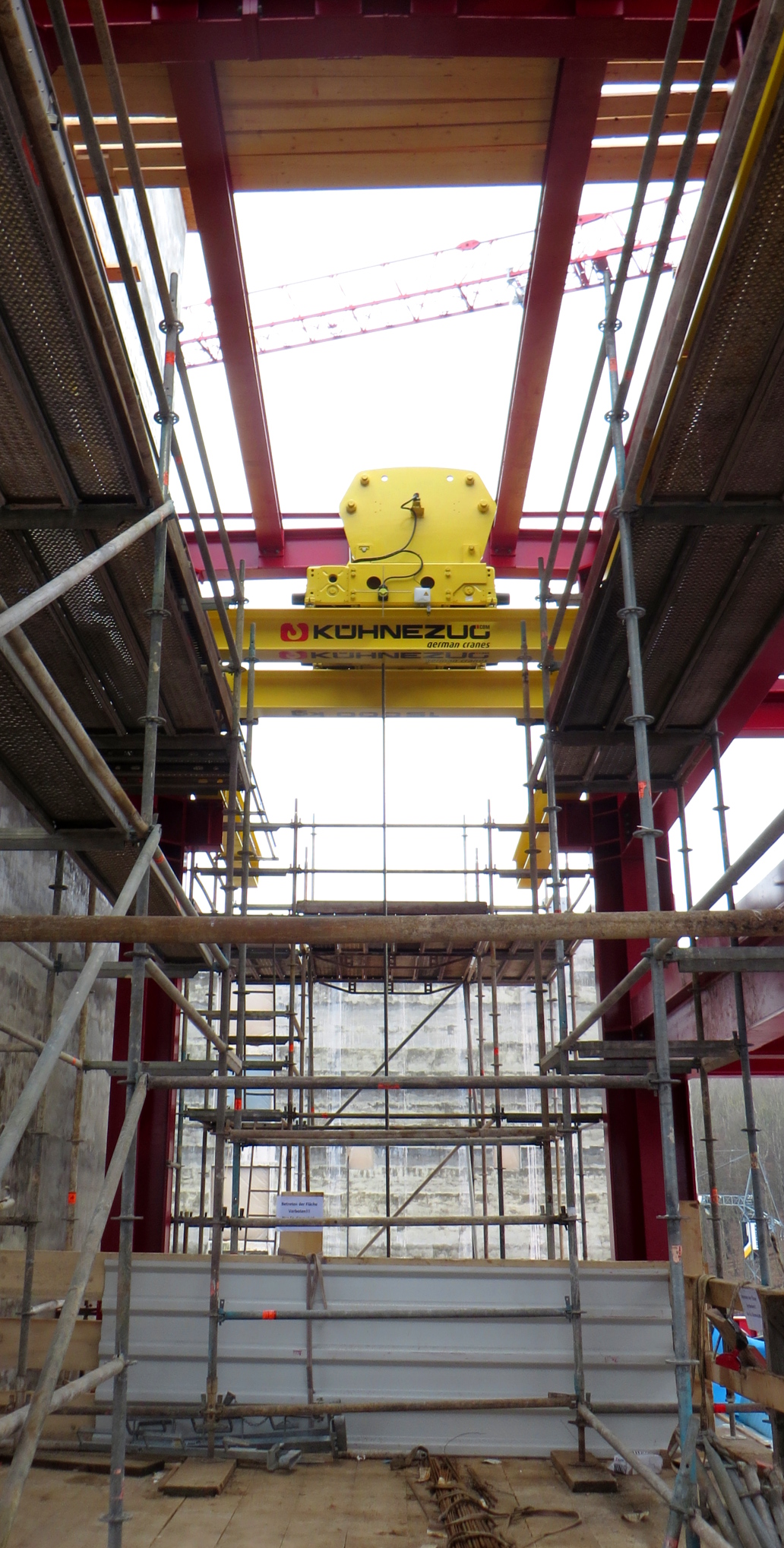

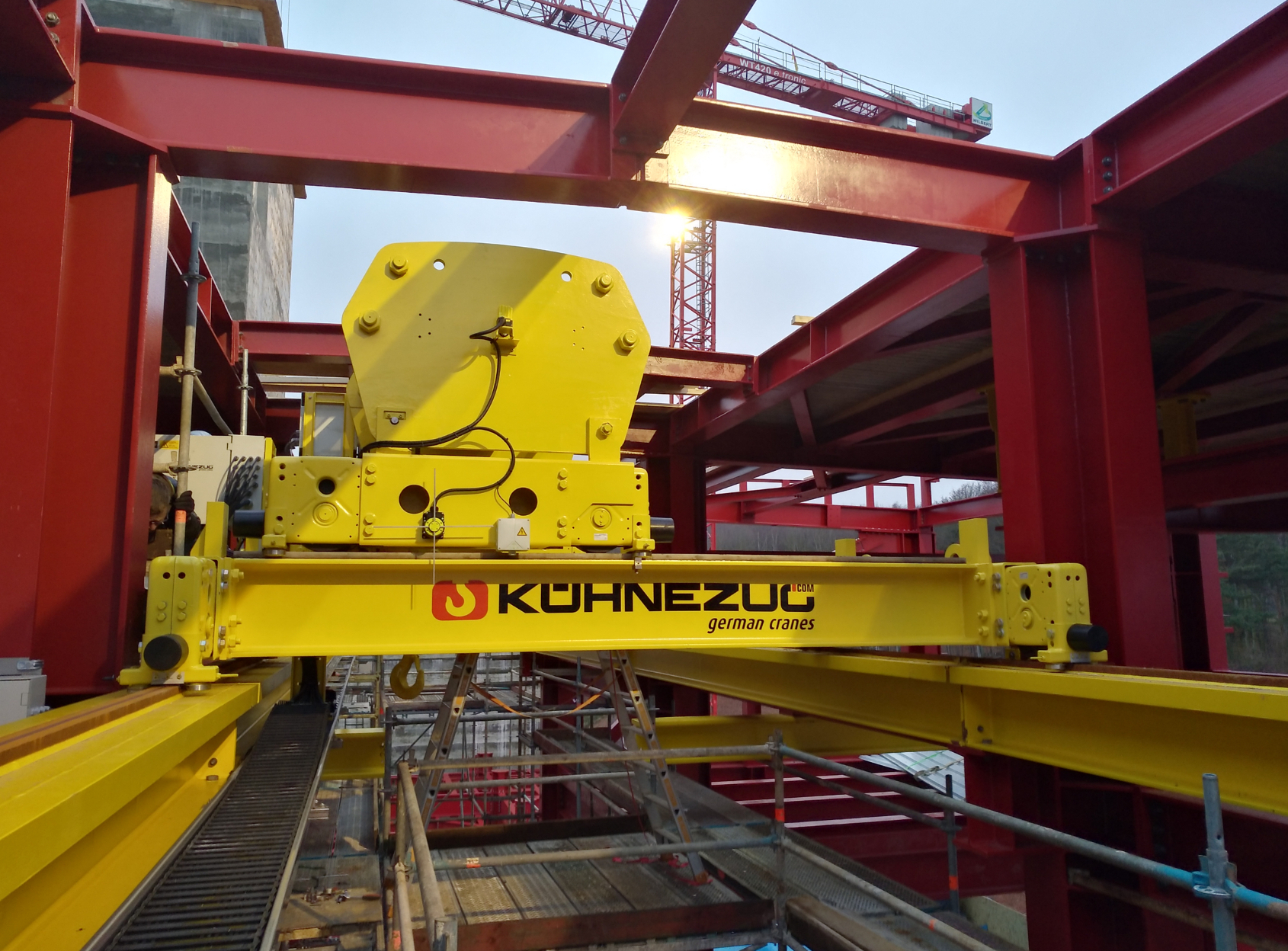

Extrem compact and self adjusting automated crane for true vertical lift in high corrosive environment
Crane Type
Double girder overhead crane
max. Capacity
15 t
Span
3,7 m
Height of lift
50 m
Lifting speed with full load
24 m/min
Travel speeds crane / trolley
40/10 m/min
Frequency inverter
Cranes / Trolleys / Hoist
FEM – group
1Am
Special features
Single rope fall with 15 t capacity

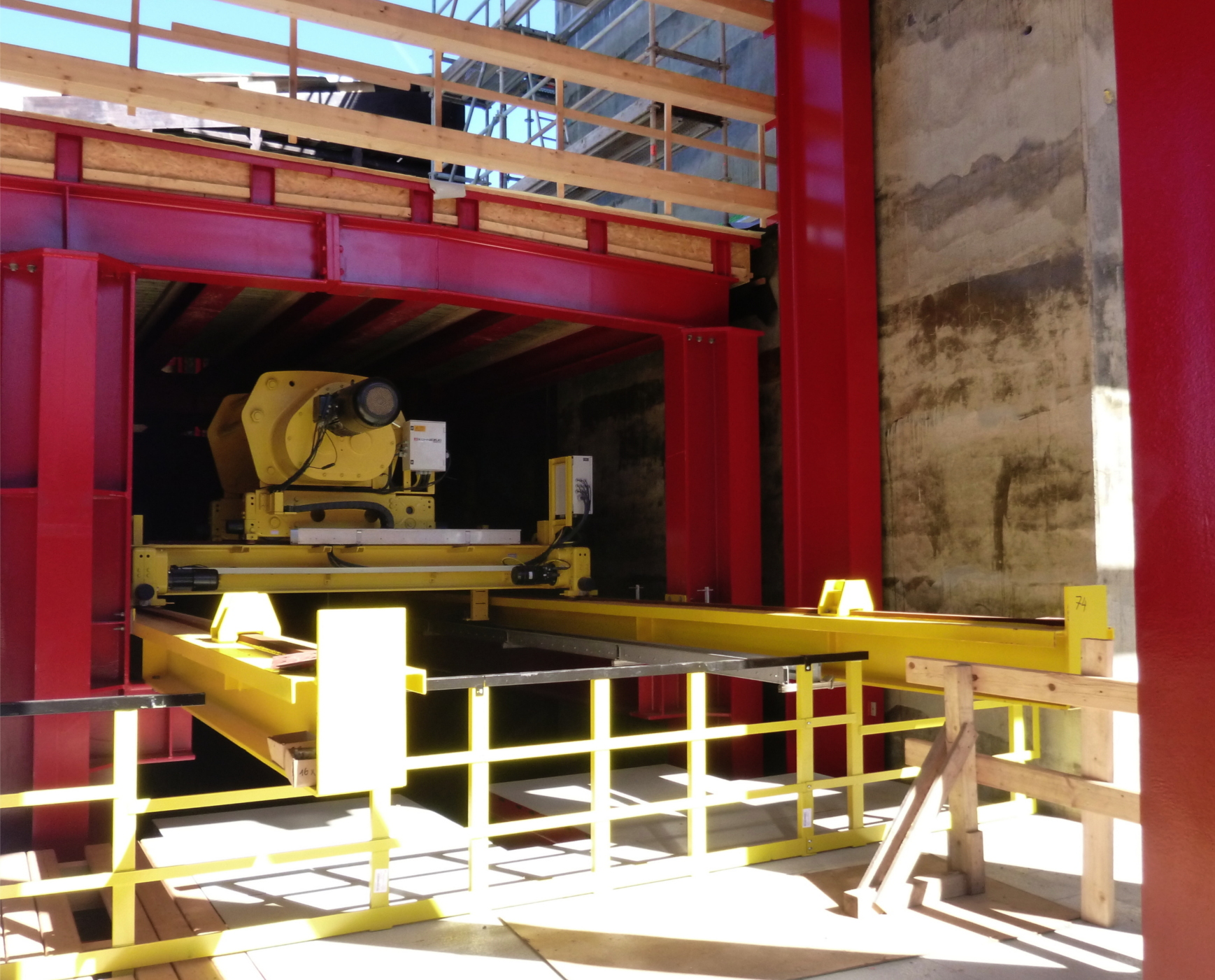

Very compact crane suitable for narrow surroundings

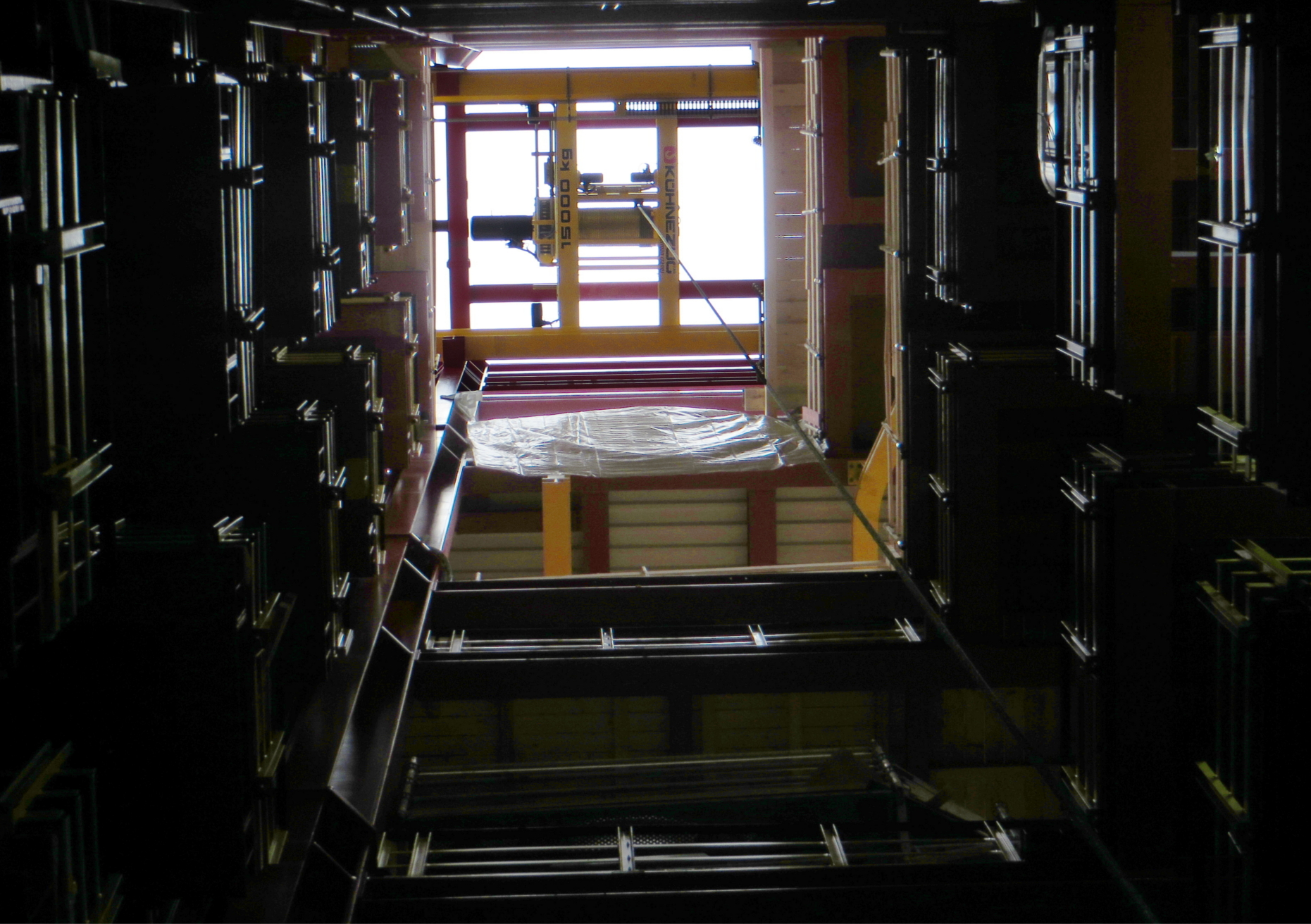

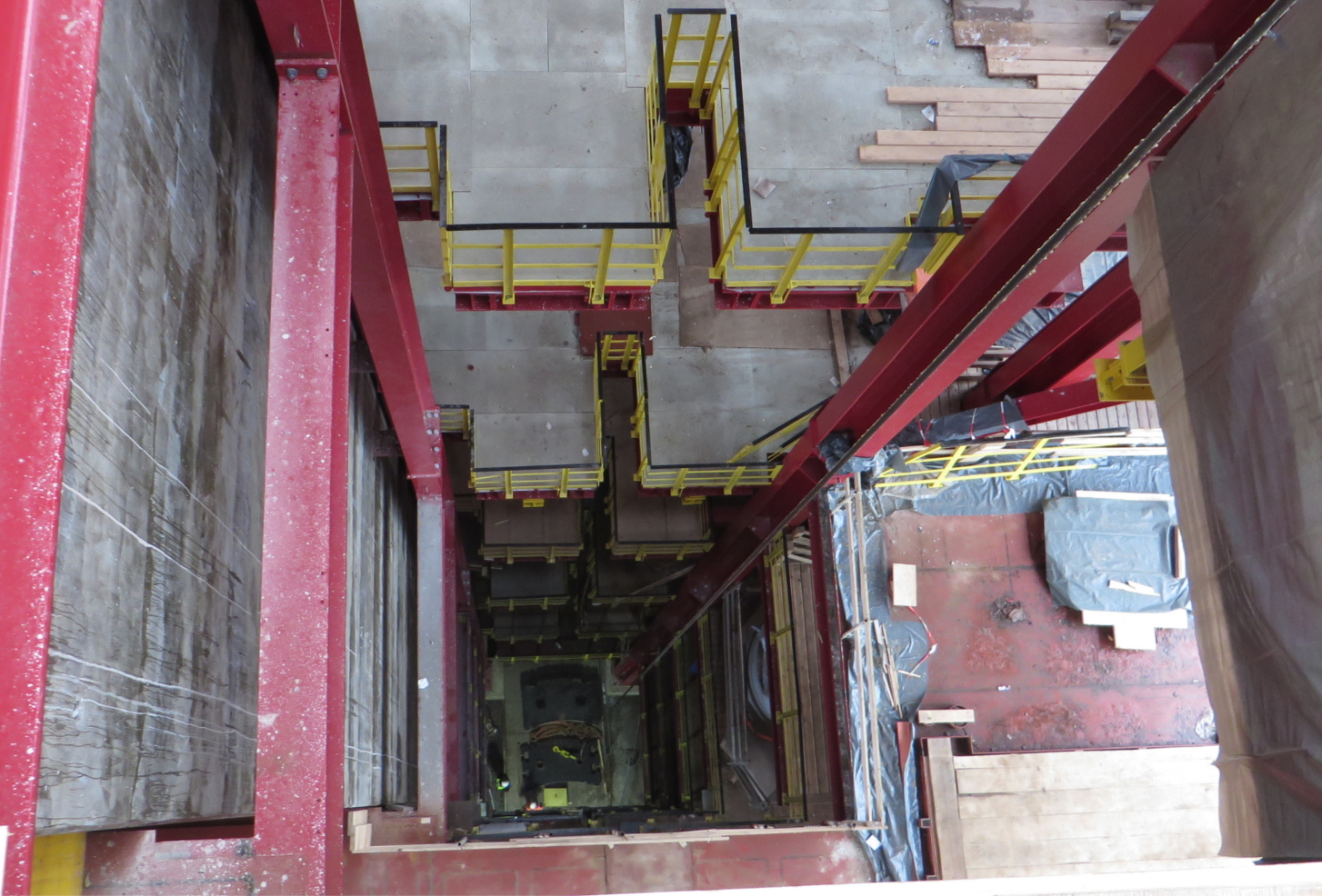

50 m lifting height through narrow shaft
True Vertical Lift – horizontal hook movements during lifting or lowering of the load are compensated by self adjusting automated crane with PLC programming
Protection against corrosive environment: 330 μm special painting, galvanisation of hollow parts and rope drum, stainless steel control panels, brakes IP66, motors IP66 with anti-condensation heaters
Motion interlock (only hoisting, cross or long travel per time) for minimal heat emission and safe crane operation
